Turning diameter (Max.)	Ø630mm
Swing over cross slide	Ø370mm
Swing in gap diameter	Ø830mm
Max. Length of workpiece	1000/1500/2000/3000/4000mm
Max. Turned length	650/1150/1650/2650/3650mm
Center heigh	315mm
Width of bed	560mm
Spindle nose	D11
Spindle bore	Ø105mm
Taper of spindle bore	Ø120 (1:20)

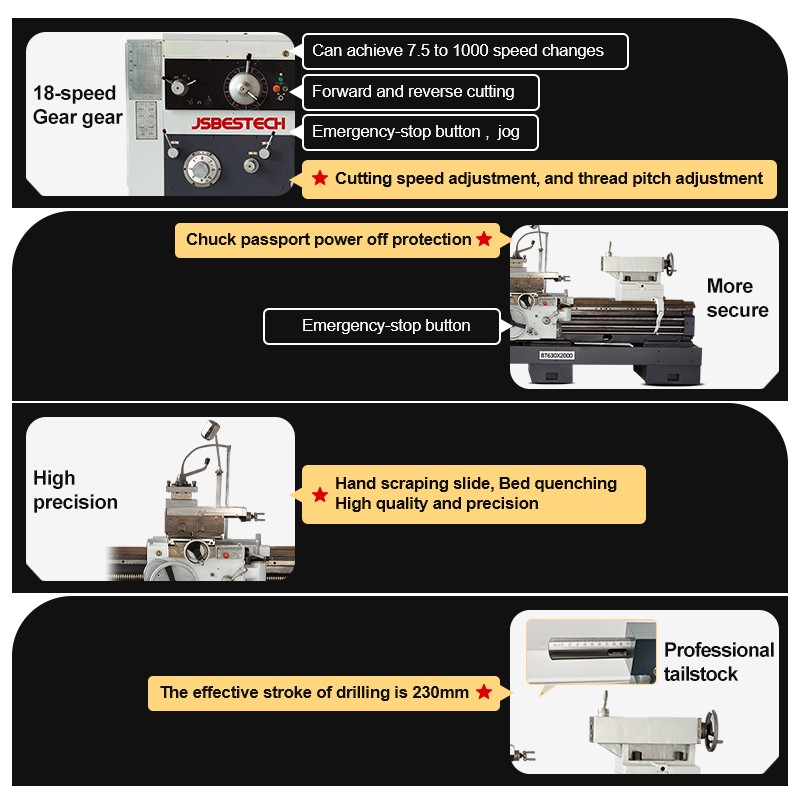

Spindle speed (18 steps)	7.5~1000rpm
Top slide travel	200mm
Cross slide travel	440mm
Max. section of tools	25x25mm
Range of metric threads (50 kinds)	1~240mm
Range of inch threads (26 kinds)	14~1 T.P.I
Threads diametral pitches (24 kinds)	28~1D.P
Threads module pitches (53 kinds)	0.5~120M.P
Tailstock quill diameter	Ø100mm
Tailstock quill travel	230mm
Taper of tailstock quill	MT6
Motor power	11kw
Coolant pump power	100w
Voltage	380V~440V (3PH)
Packing size	(3725/4225/5225/6275) x1600x1800mm

Standard Accessories	Optional Accessories
3-jaw chuck 4-jaw chuck Steady rest Face plate Dead center European Toolbox &tools Change gear set Stand Wrench set Cooling pump Oil can Working lamp Splash guard Foot brake Chip tray Follow rest	USA Quick change tool post 2 Axis Digital readout 3 Axis Digital readout Lead screw cover 1M/1.5M/2M/3M European Quick change tool post Splash guard Italian Quick change tool post Motor 9kw MT5 Rolling center Holder guard Chuck guard Tapet turning attachment 1M/1.5M/2M/3M

1)Q: How can I get quotation from you?
A: You can make the inquiry online on Alibaba, or send email to us, We can reply you within 1 hours on work days, and within 24 hours on holidays.
2)Q:About us, trading company or manufacture?

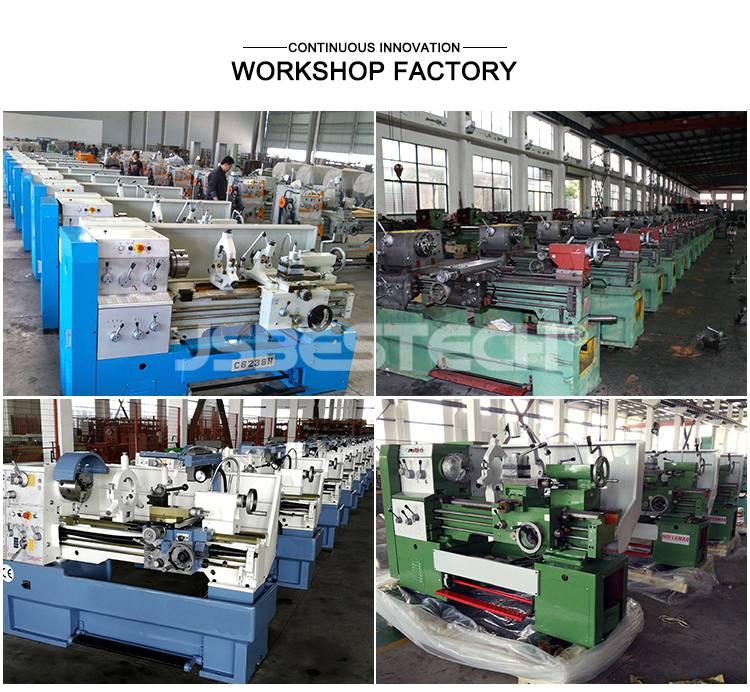

A: We are the manufacture with more than 15 years experience, welcom to visit our factory.
3)Q:Can we start with start with small quantity? What's the MOQ?
A:We can accept orders with 1 unit.
4)Q: Can I customized my products and packages?
A: Of course sure, you can. We accept OEM, make your trademark on your machine body and do the package with you need.
5)Q: How can I choose right machine and how to assure quality?
A: You can choose machine on our website according to your request. Or you can let our sellers know what is your request secification or what is your parts, so let our sellers recommend suitable machine to you.
We do the machine more than 10 years, we are specialied, we have more than 10 QC contral the quality. Every machine will be tested more than 6 times from the machine little details.
6)Q: How long can I get the machine?
A: Some machines we have stock, when get your payment we can send you at once.
We can delivery the samples within 5-10 day after getting your payment.
Usually, we also can send you the mass goods within 45 days.

We want to know:
(1)What is your Industrial Voltage?
(2) We strongly suggest you tell us size, material of your workpiece for our evaluation, if possible, better to send us your workpiece drawing, so that we can recommend yuo most suitable model!
