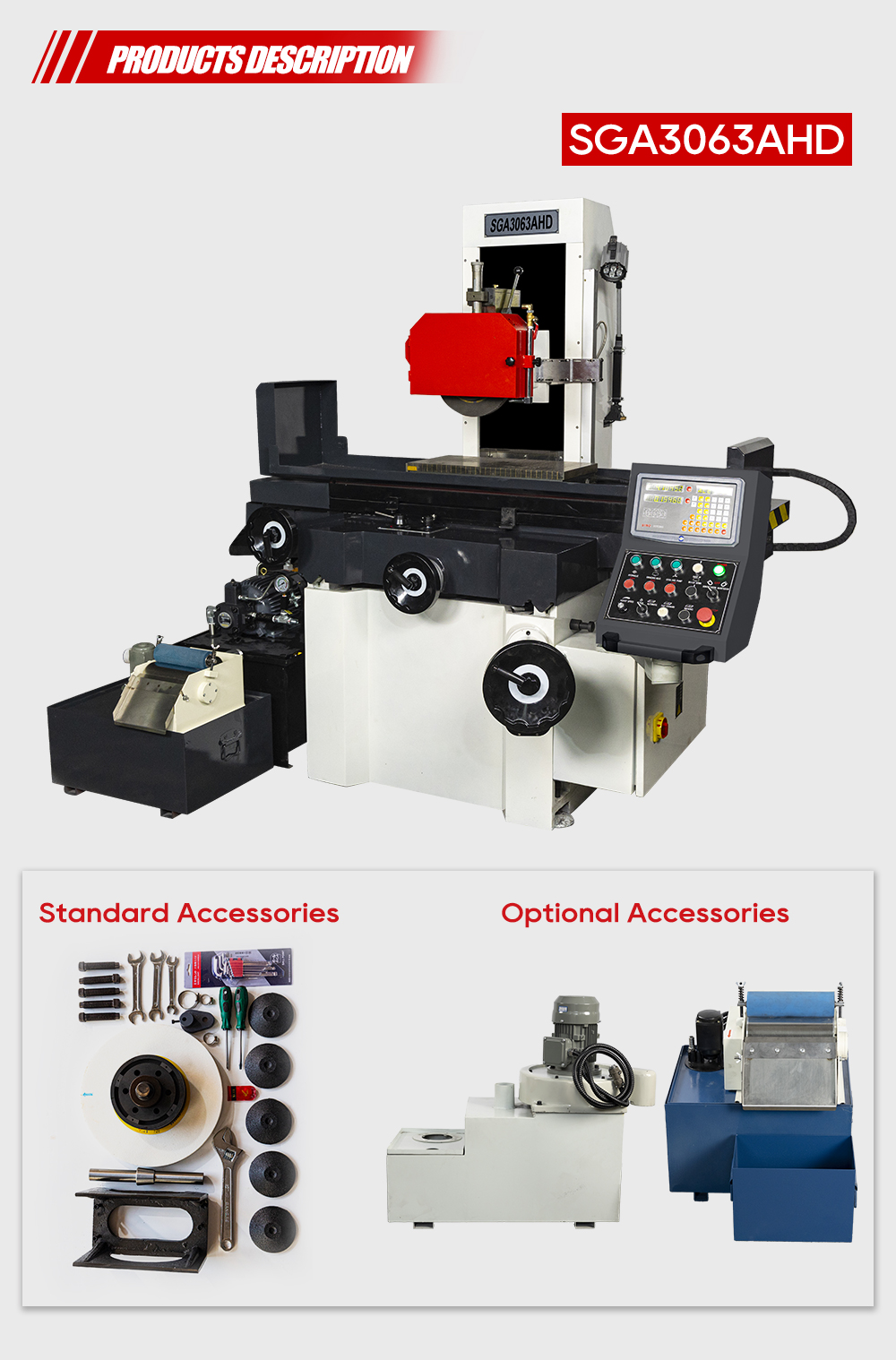

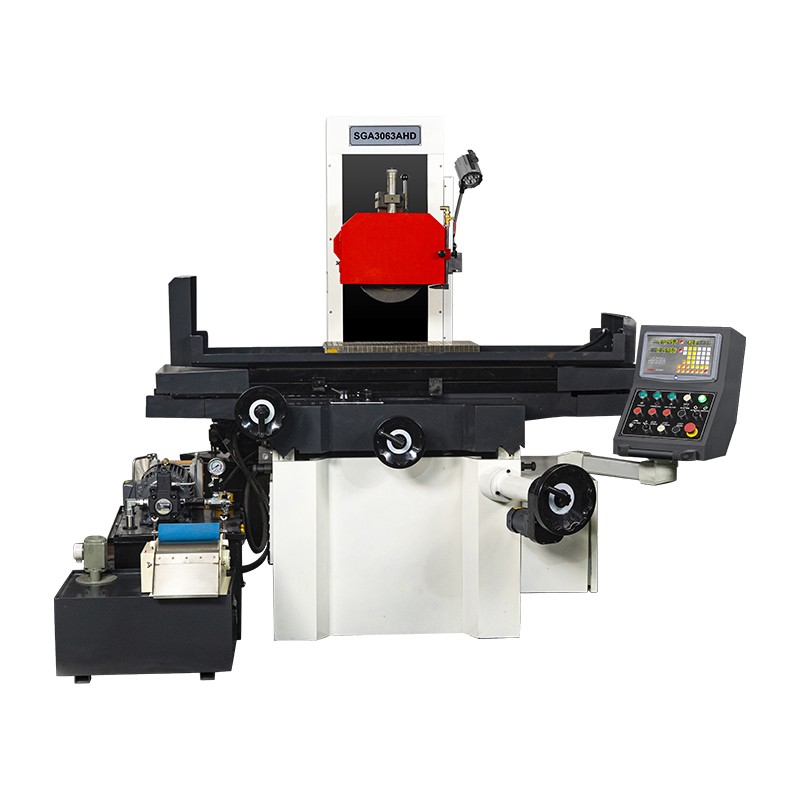

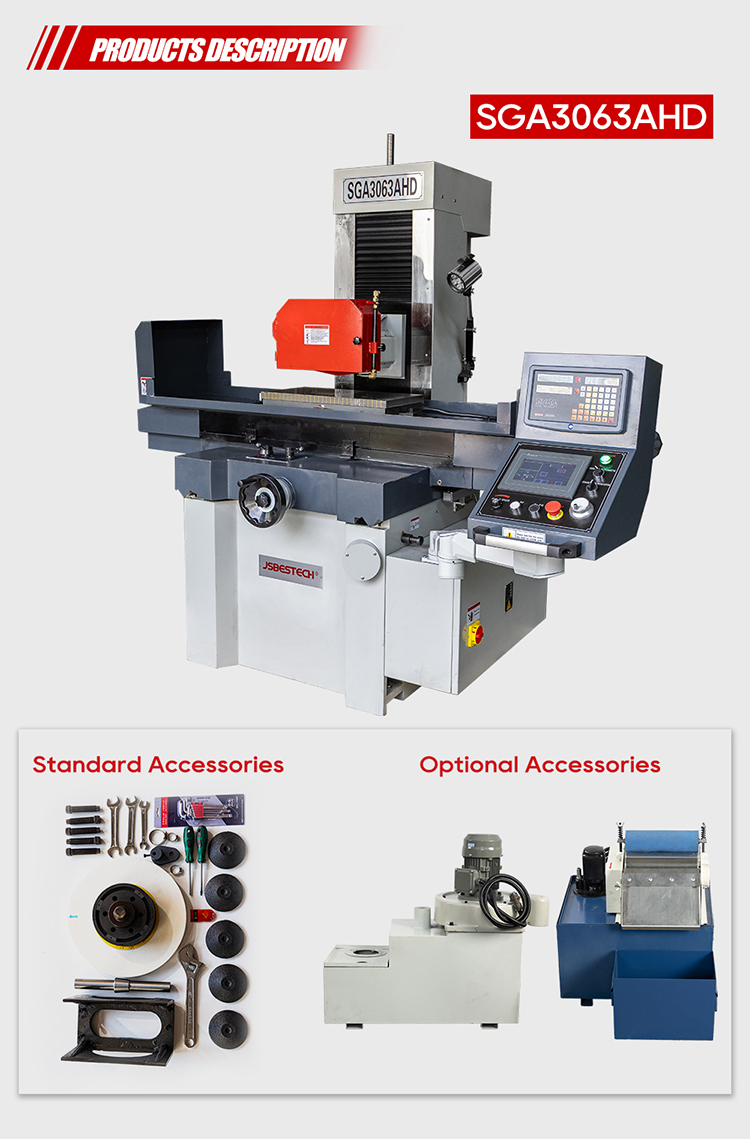

Fine-adjustment SGA3063AHD 600x300mm Sucker Size Accurate Surface Grinder for Precision Measuring Tool Accessories Processing

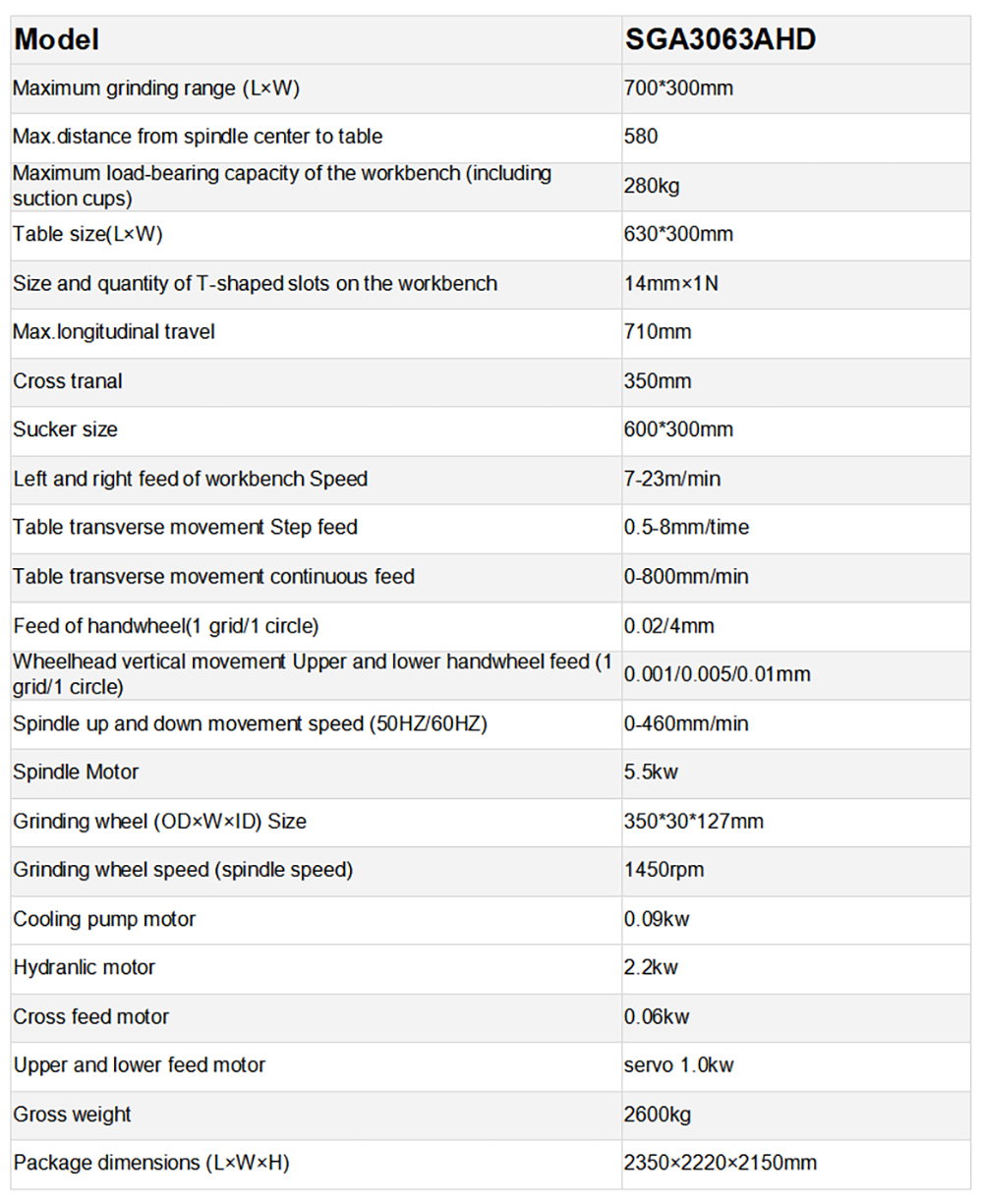

Maximum Grinding Range (LxW)	700x300mm
Max.Distance From Spindle Center To Table	580mm
Maximum Load-Bearing Capacity Of The Workbench (Including Suction Cups)	280kg
Table Size(LxW)	630x300mm
Size And Quantity Of T-Shaped Slots On The Workbench	14mmx1N
Max. Longitudinal Travel	710mm
Cross Tranal	350mm
Sucker Size	600x300mm
Left And Right Feed Of Workbench
Speed	7-23m/min
Handwheel Per Revolution	/
Table Transverse Movement
Step Feed	0.5-8mm/time
Continuous Feed	0-800mm/min
Feed Of Handwheel(1 Grid/1 Circle)	0.02/4mm
Wheelhead Vertical Movement
Upper And Lower Handwheel Feed (1 Grid/1 Circle)	0.001/0.005/0.01mm
Spindle Up And Down Movement Speed (50Hz/60Hz)	0-460mm/min
Spindle And Grinding Wheel
Spindle Motor	5.5KW
Grinding Wheel (ODxWxID) Size	350x30x127mm
Grinding Wheel Speed (Spindle Speed)	1450rpm
Cooling Pump Motor	0.09kw
Hydranlic Motor	2.2kw
Cross Feed Motor	0.06kw
Left And Right Feed Motor	/
Upper And Lower Feed Motor	servo 1.0kw
Net Weight	/
Gross Weight	2600kg
Package Dimensions(LxWxH)	2350x2220x2150mm
