◆The appearance is beautiful and elegant, and the overall layout is symmetrical and coordinated
◆It adopts mechanical transmission, mechanical clamping, mechanical transmission and easy operation.
◆The rail is quenched by ultra high frequency.
◆Automatic lifting of rocker arm, automatic feeding of spindle, high production efficiency.
◆The structure is reliable, the manufacture is excellent, and the accuracy of the machine tool is ensured.
◆It combines the advantages of the drilling machine into one. To increase the machining range of drilling machine, such as boring,
tapping, threading, drilling, reaming, reaming, reaming plane and other functions, is widely used in small and medium-sized

enterprises, township and mechanical processing of individual industries.

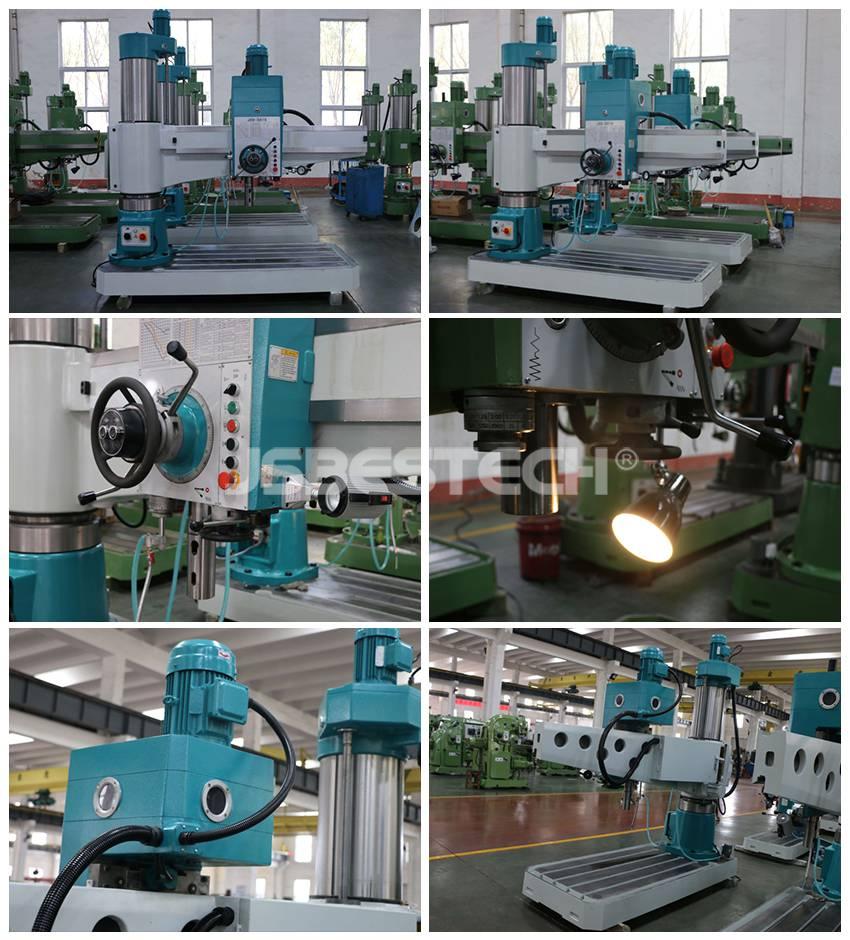

Z3032  vertical rocker drilling machine automatic lifting Radial Drilling Machine

Max. drilling dia.	32mm
Column diameter	200mm
Distance between spindle axis to column surface	260-880mm
Distance between spindle nose to table surface	220-980mm
Max. arm lifting range	730mm
Spindle travel	120mm
Spindle taper	MT4
Spindle speeds	108-1000r/min
Spindle feed(3steps)	0.10  0.16  0.25mm/r
Ram swivel	± 180°
Main motor power	1.5/2.2KW
Lifting motor power	0.55KW
N.W	850 kg
Overall size(L×W×H)	1250×650×2020mm
