Drill Press

ZJ4113 Precision mini bench drill press machine with front switch

Model:ZJ4113
Max Drilling Diameter:Φ13mm(1/2’’)
Motor Power:250/350w
Chuck Capacity:1.5-13mm
Spindle Travel:50mm
Class Of Speed:5
  • Product Detail
  • Accessories

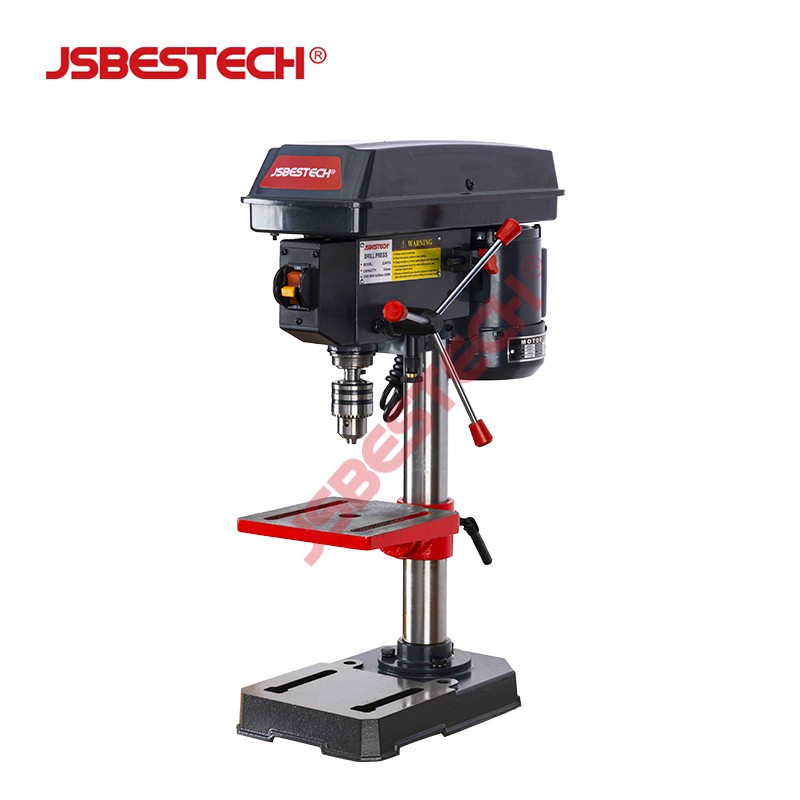

ZJ4113 Precision mini bench drill press machine with front switch


● Machine approved "CE"

● Height adjustment of the drilling table viatoothed rack
● Worktable can be inclined by ±45° and slewed by 360°
● Largely diemensioned,height-adjustable screening grid with safety switch
● Guaranteed true running accuracy of less than 0.02 drilling spindle sleeve

● Heavy type for home shops,maintanance shops and light industrial applications

Model ZJ4113
Speed 50/60Hz
620~2620/740~3140rpm
Spindle Taper
B16
Max distance from spindle axis to surface of column
105mm
Max distance from spindle end to surface of table
220mm
Max distance from spindle end to surface of base
300mm
Swing
210mm
Table Size
160×160mm
Base Size
300×195mm
Column Diameter
Φ46mm
Height
580mm
Net Weight/ Gross Weight
16/17kg
Packing Size
430×340×X230mm

Standard Accessories
Optional Accessories
Drill chuck
Wrench set
Aluminium motor
Copper motor
Chuck guard with power off
Micro switch
Vice
Key less drill chuck
Laser light
