ZJQ5116 Front emergency switch high spee

ZJQ5116 Front emergency switch high speed mini bench drill press machine

Model:ZJQ5116
Max Drilling Diameter:16mm(5/8'')
Motor Power:375/450/550w
Chuck Capacity:3-16mm
Spindle Travel:80mm
Class Of Speed:16
Speed 50/60Hz:180~2770/220~3320rpm
Spindle Taper:MT2

Product Detail
Accessories

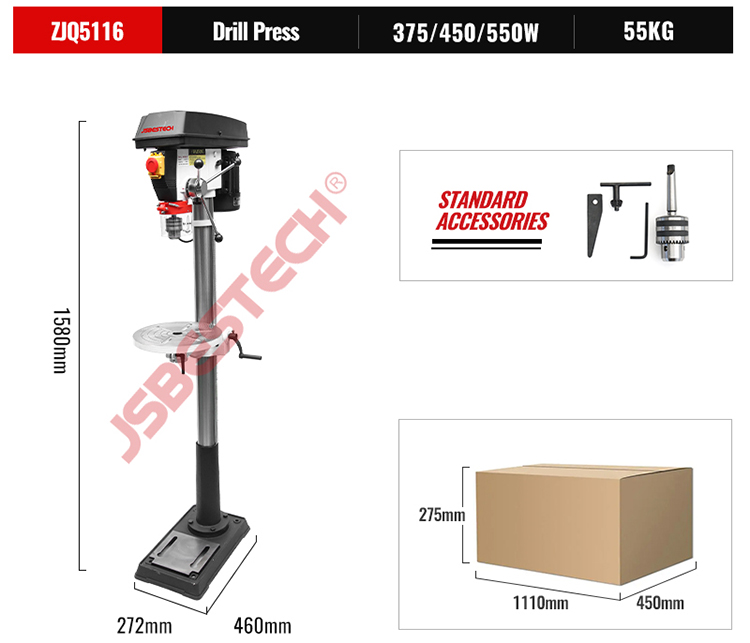

ZJQ5116 Front emergency switch high speed mini bench drill press machine

Model	ZJQ5116
Max distance from spindle axis to surface of column	162.5mm
Max distance from spindle end to surface of table	725mm
Max distance from spindle end to surface of base	1205mm
Swing	325mm
Table Size	290mm
Base Size	460x270mm
Column Diameter	72mm
Height	1580mm
Net Weight/ Gross Weight	55/58kg
Packing Size	1110x450x275mm

STANDARD ACCESSORIES	OPTIONAL ACCESSORIES
Gear rim drill chuck(3-16mm)B16 Side switch Morse taper MT2 Wrench set Drill Chuck	Keyless drill chuck Drill chuck guard Machine vice Micro switch Laser Machine lamp Front switch
