Jiangsu Bestech Industrial Co., Ltd.
| Worktable |
|
| Table size | 920x400mm |
| T slot | 3 no |
| Centre distance | 120mm |
| T-Width | 14mm |
| Max. load of worktable | 300kg |
| machining range |
|
| Longitudinal travel | 700mm |
| Cross travel | 400mm |
| Vertical travel | 500mm |
| spindle nose to table surface | 100-600mm |
| spidle axis to column surface | 425mm |

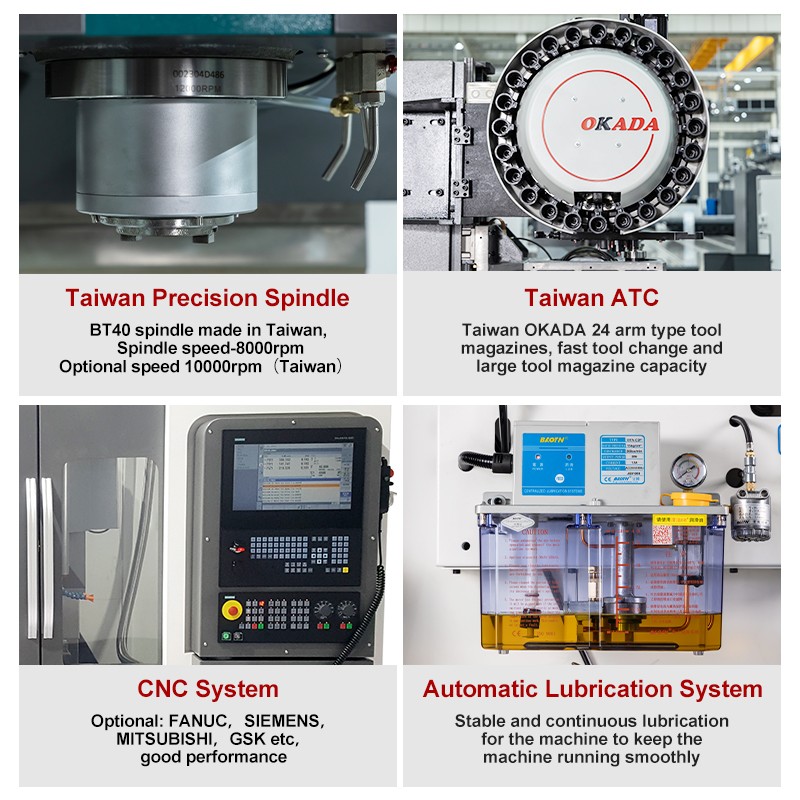

| spindle : | |
| Spindle taper | BT40 |
| Speed Range |
40-8000rpm |
| spindle motor power |
5.5kw(servo) |
| feed : | |
| cutting feed X/Y/Z | 1-10000mm / min |
| rapid feed X/Y/Z | 30/30/24m / min |
|
tool magazine |
|
|
tool magazine capacity |
16piece |
|
tool magazine type |
drum-type |
|
Dimension of tool |
Φ80x300mm (full tool) Φ130x300mm(adjancent empty tool ) |
|
Max. tool weight |
8kg |
|
Tool changing time (tool to tool)/ (cut to cut) |
3/7s |
|
accuracy |
|
|
positioning accuracy(X/Y/Z) |
0.025/0.022/0.022mm |
|
Repeat positioning accuracy(X/Y/Z) |
0.015/0.012/0.012mm |
|
others |
|
|
air pressure |
0.5-0.7Mpa |
|

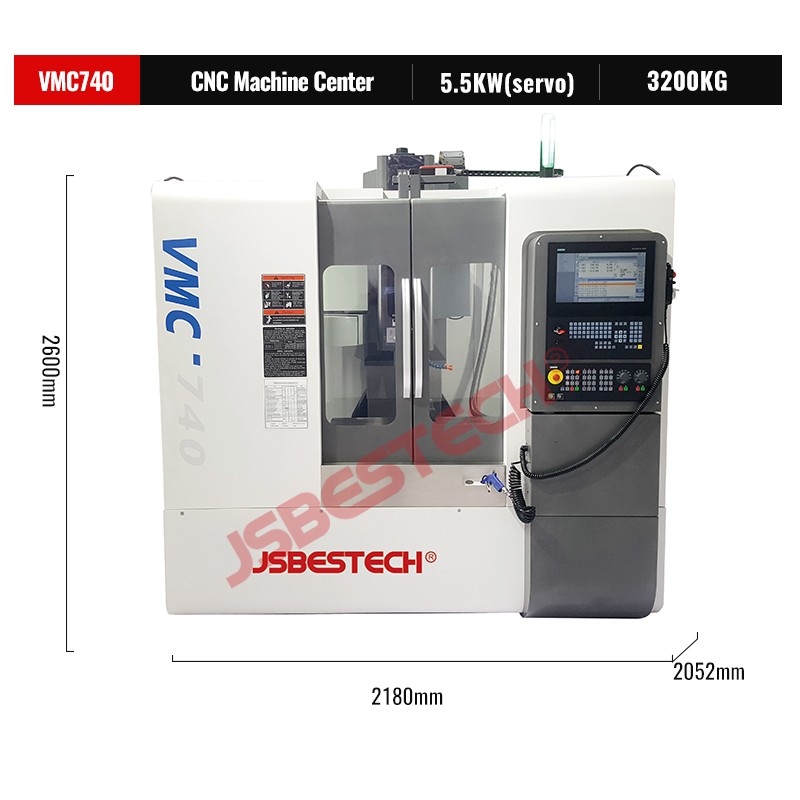

overall dimensions(LxWxH) |
2180x2052x2600mm |
|
Machine weight |
3200kg |
