| Machine range |
|
| X travel | 800mm |
| Y travel | 550mm |
| Z travel | 550mm |
| Distance from spindle nose to table surface | 150-700mm |
| Table |
|
| Table size |
1000x550mm |
| T slot |
18/90/5 |
| Table load |
500kg |

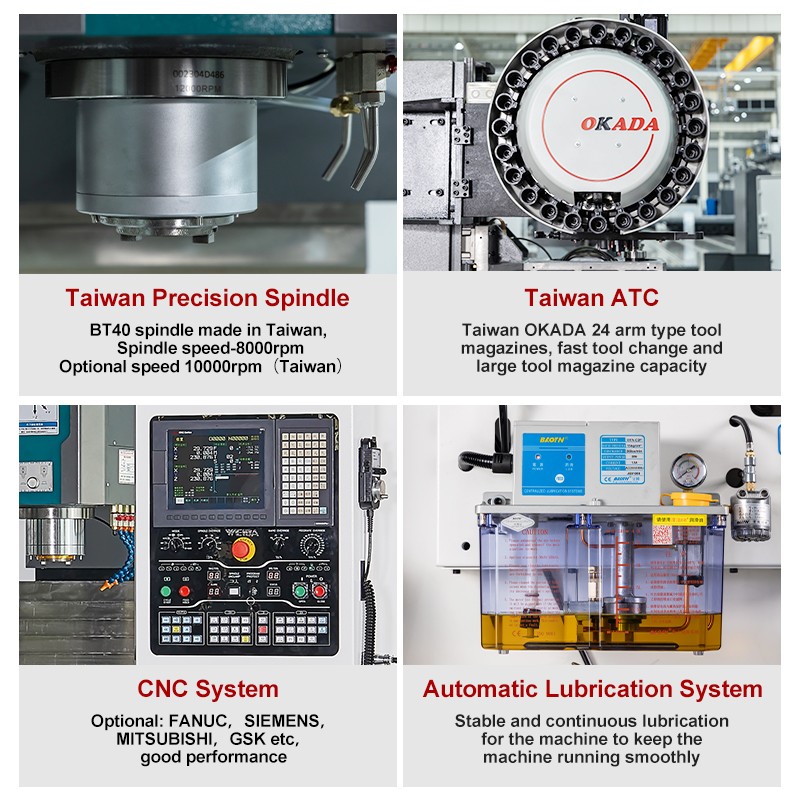

| spindle | |
| speed | 40-10000rpm |
| power | 11/15kw |
| taper | BT40 |
| feeding |
|
| X fast feeding |
48m/min |
| Y fast feeding |
48m/min |
| Z fast feeding | 48m/min |
|
Cutting speed |
1-10000mm/min |
|
Tool magazine |
|
|
Arm typel |
|
|
capacity |
24 |
|
Max too dia（full/empty） |
78/120mm |
|
Max tool length |
300mm |
|
Max tool weight |
8kg |
|
Tool change |
1.55/5s |
|
accuracy |
|
|
Positioning accuracy(X/Y/Z) |
0.025/0.025/0.025mm |
|
Re-positioning(X/Y/Z) |
0.015/0.015/0.015mm |
|
system |
|
|
model |
fanuc |
|
Total control system |
3 Axes |
|
Simultaneous axis |
3 Axes(linear) |
|
electric |
3ph，380V±10%，50Hz |
|
Air source |
0.5-0.7Mpa |
|
Machine weight |
5000kg |
|

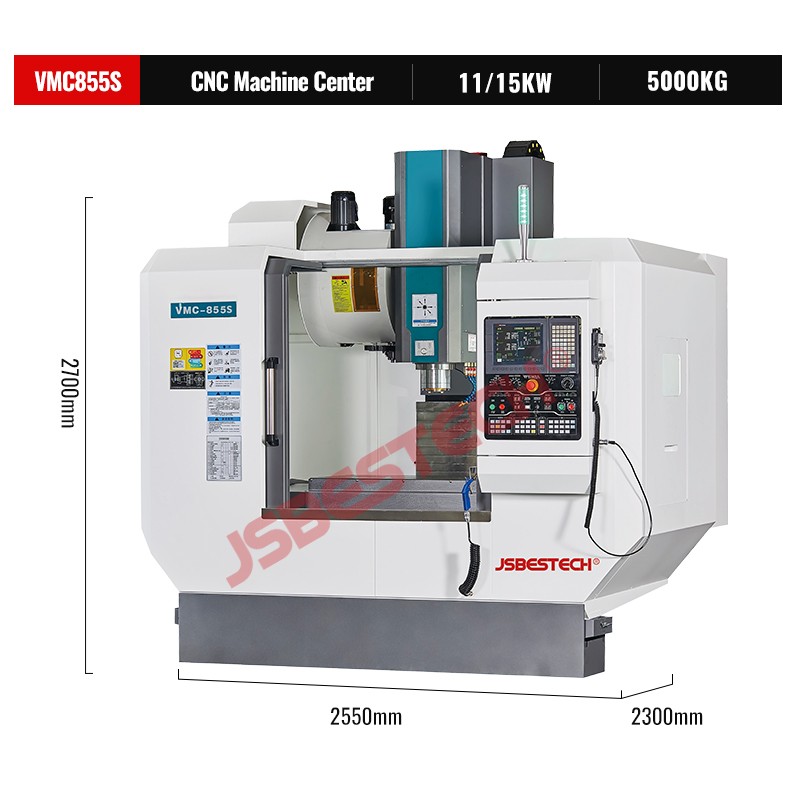

Overall size |
2550×2300×2700mm |
