Wholesale ZJ4116H 375W aluminum laser mu

Wholesale ZJ4116H 375W aluminum laser multi drill press

14-inch(16mm)Bench Drill Press
MODEL:ZJ4116H
Φ16mm(5/8'') Max.Chuck Capacity
14’’(360mm) Swing
16 Spindle Speeds
-45°~0°~+45° Table Tilt L&R
Optional Chuck Guard And Micro-switch
For CE Requirement

Product Detail
Accessories

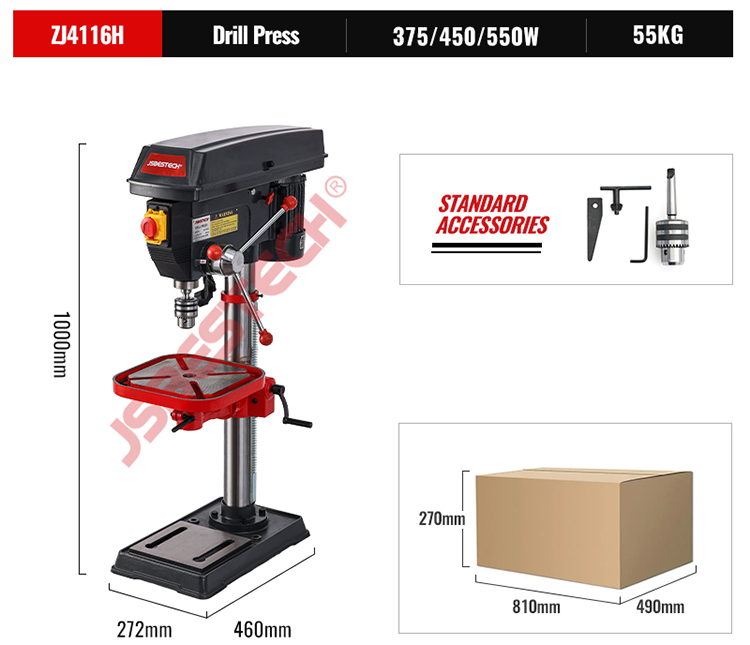

Wholesale ZJ4116H 375W aluminum laser multi drill press

Model	ZJ4116H
Max Drilling Diameter	16mm(5/8'')
Motor Power	375/450/550w
Chuck Capacity	3-16mm
Spindle Travel	85mm
Class Of Speed	16
Speed50/60Hz	180~2770/220~3320rpm
Spindle Taper	MT2
Max distance from spindle axis to surface of column	180mm
Max distance from spindle end to surface of table	410mm
Max distance from spindle end to surface of base	600mm
Swing	360mm
Table Size	290x290mm
Base Size	460x272mm
Column Diameter	72mm
Height	1000mm
Net Weight/ Gross Weight	55/57kg
Packing Size	810x490X270mm

Standard Accessories	Optional Accessories
Gear rim drill chuck(1.5-13mm) B16 Morse taper Wrench set Drill Chuck	Keyless drill chuck Drill chuck guard Machine vice Front switch Micro switch Laser Machine lamp
