CNC Lathe Machine

ck6150 cnc metal working lathe machinery industry equipment

Model: BTL500
Max.Swing over bed:500mm

Max.Swing over carriage:280mm

Main motor power:7.5kw or 11kw
Coolant pump power:180w
Overall dimension(LxWxH):2860/3320x1600x1830mm
Packing size(LxWxH):3060/3520x1800x2030mm
Net Weight:2750/3100/3350kg
Gross Weight:3000/3450/3650kg

  • Product Detail
  • Accessories
  • FAQS
ck6150 cnc metal working lathe machinery industry equipment

1). 500mm swing over bed
2). 1100mm and 1500mm center distance
3). 4 or 6 or 8 tool carrier for choose
4). 82mm or 86mm big spindle bore
5).Door equipped with a safety switch
6). Stand and base use full casting, good rigidity

7).Bed guideways inductively hardended (HRC42-52)

Model BTL500
Max.Swing over bed
Max.Swing over carriage
Max.cutting length
Rail width
Spindle nose
Spindle bore
Taper of spindle bore
X a-xis travel
Z a-xis travel
X/Z Rapid speed
Hydralldic turret
4 or 6 or 8
Main motor power
7.5kw or 11kw
Packing size(LxWxH)
Net Weight

Standard Accessories
Optional Accessories
Alloy center
Three-jaw chuck
Reduction sleeve
Four position electrit turret
Auto lubration coolant system
Frequency conversion main motor
GSK980TDC Numerical control system
AC servo motor
Hydraulic station
Hydraulic tail-stock
Hydraulic station
Chip conveyor and cart
Pneumatic or hydraulic chuck
Spring fastener of pneumatic
Horizontal six or eight-station
Siemens808D ADVANCED
Fanuc oi mate numeral control system

1: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

2: What is your trade terms?
A : FOB, CFR and CIF all acceptable.

3:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

4: What's your main products of your company?
A: We specialized in all kinds of machines ,such as Bench Lathes (manual and CNC), Drilling MIlling Machine, Drill Press, Bench Grinder, Table Saw and Band Saw,etc.

5: Where is our factory located? How can I visit there?

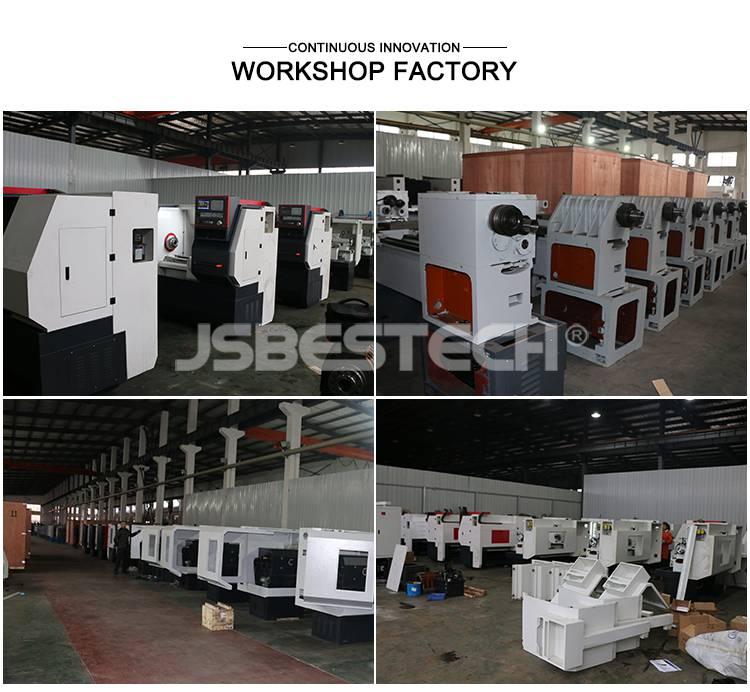

A : Our factory is located in Jiangsu Province, China. Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed.
