BT280GF Bench 8 Step Belt Speed Lathe Ma

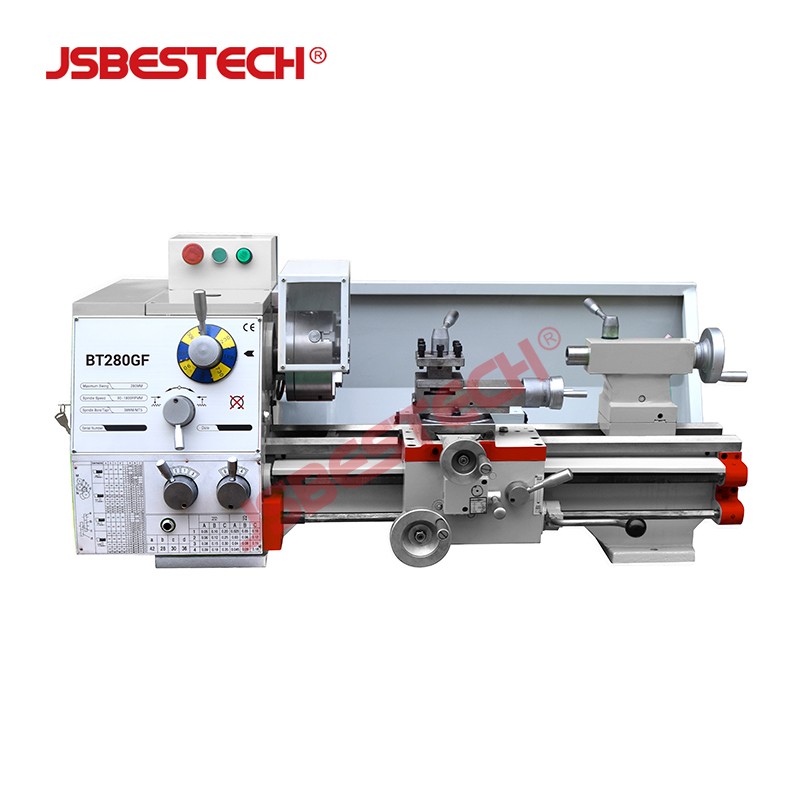

BT280GF Bench 8 Step Belt Speed Lathe Machine

Model No.:BT300F
Distance between centers:700mm
Swing over bed:300mm
Swing over cross slide:180mm
Width of bed:182mm
Taper of spindle bore:MT5
Spindle bore:38mm
Number of spindle speed:Variable speed
Range of spindle speed:80-2000rpm
Range of cross feed:0.01~0.10mm/rev

Product Detail
Accessories

Turning diameter (Max.)	Ø280mm
Swing over cross slide	Ø165mm
Distance between centers	550/750mm(optional)
Width of bed	180mm
Spindle bore	Ø38mm
Spindle taper	MT5
Spindle speed (8 steps)	90~1800rpm
Top slide travel	75mm
Cross slide travel	185mm
Max. section of tools	12x12mm
Range of metric threads	0.2~3.5mm
Range of inch threads	8~48T.P.I
Tailstock quill diameter	Ø35mm
Tailstock quill travel	75mm
Taper of tailstock quill	MT3
Motor power	1.1kw
Voltage	110V~240V(1PH)
Packing size	1170/1420x650x650mm
