Multi-Function Lathe

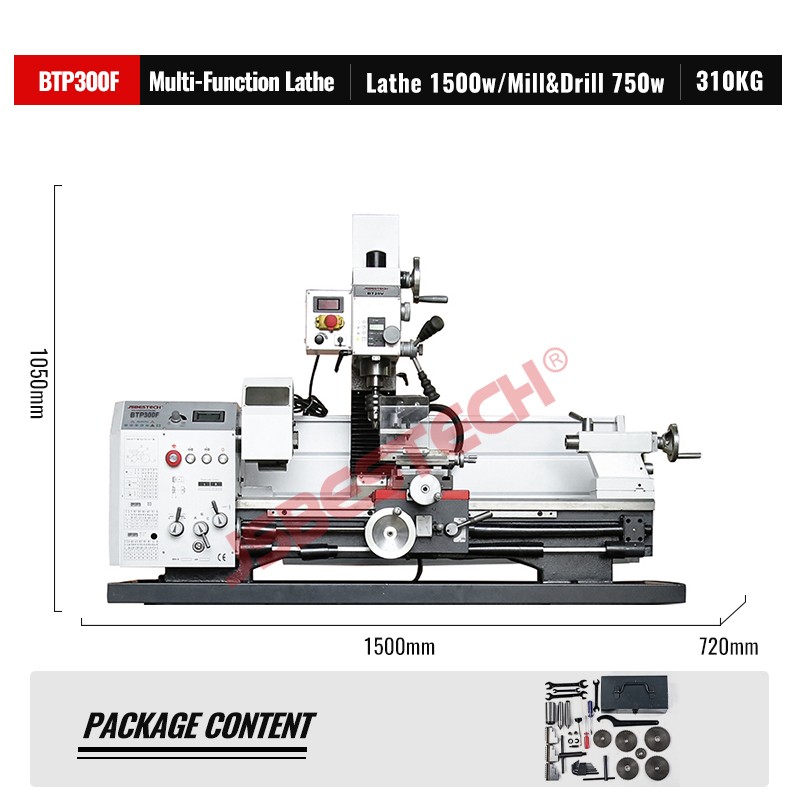

BT300 1500W chinese mini lathe for metal baby lathe machine

Swing over bed :300mm
Swing over cross slide:180mm
Distance between centers:700mm
Width of bed :182mm
Taper of spindle bore:MT5
Spindle bore:38mm
Number of spindle speed:Variable speed
  • Product Detail
  • Accessories

1)Widely useful, like home hobby, Education, Factory use ect, operation easy.
2)Various speeds and thread cutting function are avaiable with gear box.
3)Induction-hardened and ground prismatic bed made from cast iron.
4)High precision and hardened spindle.
5)Safety magnetic and lock key European-standard switch.
6)Cost-efficient,precise and stable value.

Lathe
Turning diameter (Max.) Ø300mm
Swing over cross slide Ø178mm
Distance between centers 700mm
Spindle bore Ø38mm
Taper of spindle bore MT5
Variablr speed 50~2250rpm
Top slide travel 70mm
Cross slide travel 180mm
Range of metric threads 0.2~3.5mm
Range of inch threads 8~48T.P.l
Tailstock quill travel 70mm
Taper of tailstock quill MT3
Motor power 1500w
Voltage/AC 110~380V / 50~60Hz
Mill & Drill
Face milling capacit Ø63mm
Taper of spindle bore MT2/R8
Spindle travel 50mm
Max. drilling capacity Ø20mm
Range of spindle speed 50~2000rpm
Motor power 750w
Head tilt left and right ±45°
Packing size 1500x720x1050mm

Standard accessories
Optional accessories
Oil can
Chip tray
Wrench set
3-jaw chuck
Splash guard
Change gear set
Tool box or tools
MT2 dead center
Lead screw cover
Chuck cover
Working lamp
Live center MT3
2-axis digital readout
3-axis digital readout
Quick change tool post
Tapet turning attachment
