Universal Milling Machine BFX6432 With V

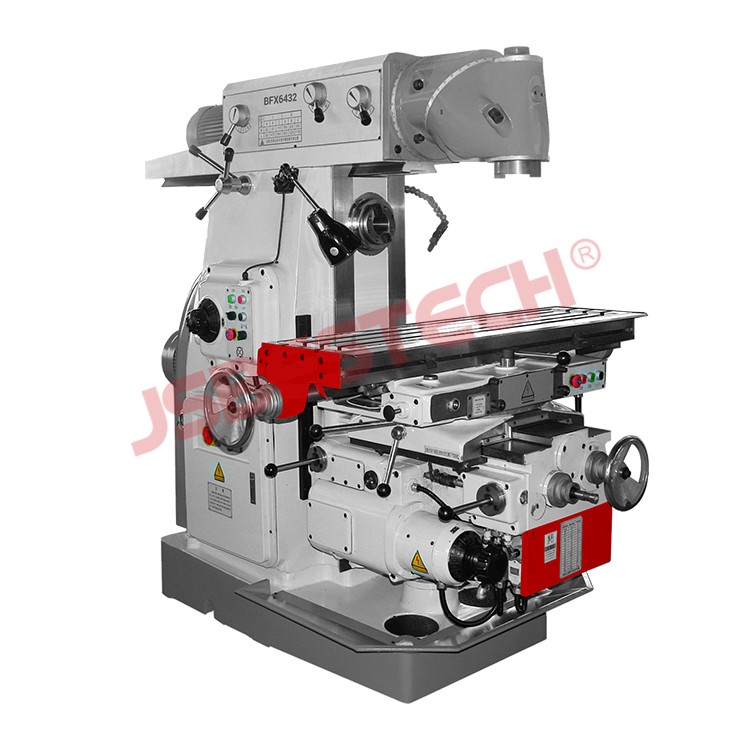

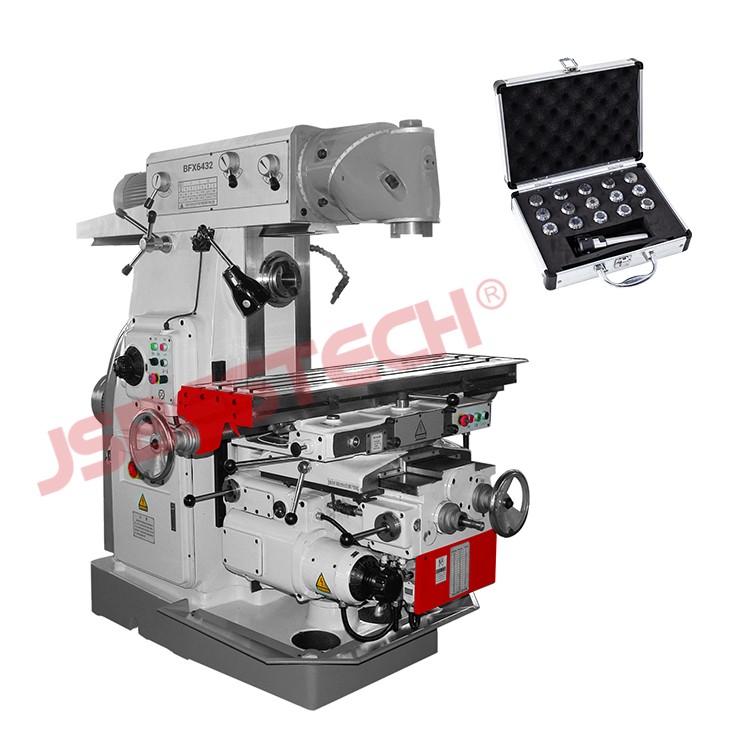

Universal Milling Machine BFX6432 With Vertical/Horizontal Spindle and Rotary Table

Model:BFX6432
Table Center To Vertical Spindle:190~510mm
Table Center To Vertical Column：215~470mm
Spindle Taper:7:24 ISO50
Steps Of Spindle Speed:12
Range Of Spindle Feed:60~1750rpm
Working Table Size:1325x320/1600x320mm (Optional)

Product Detail

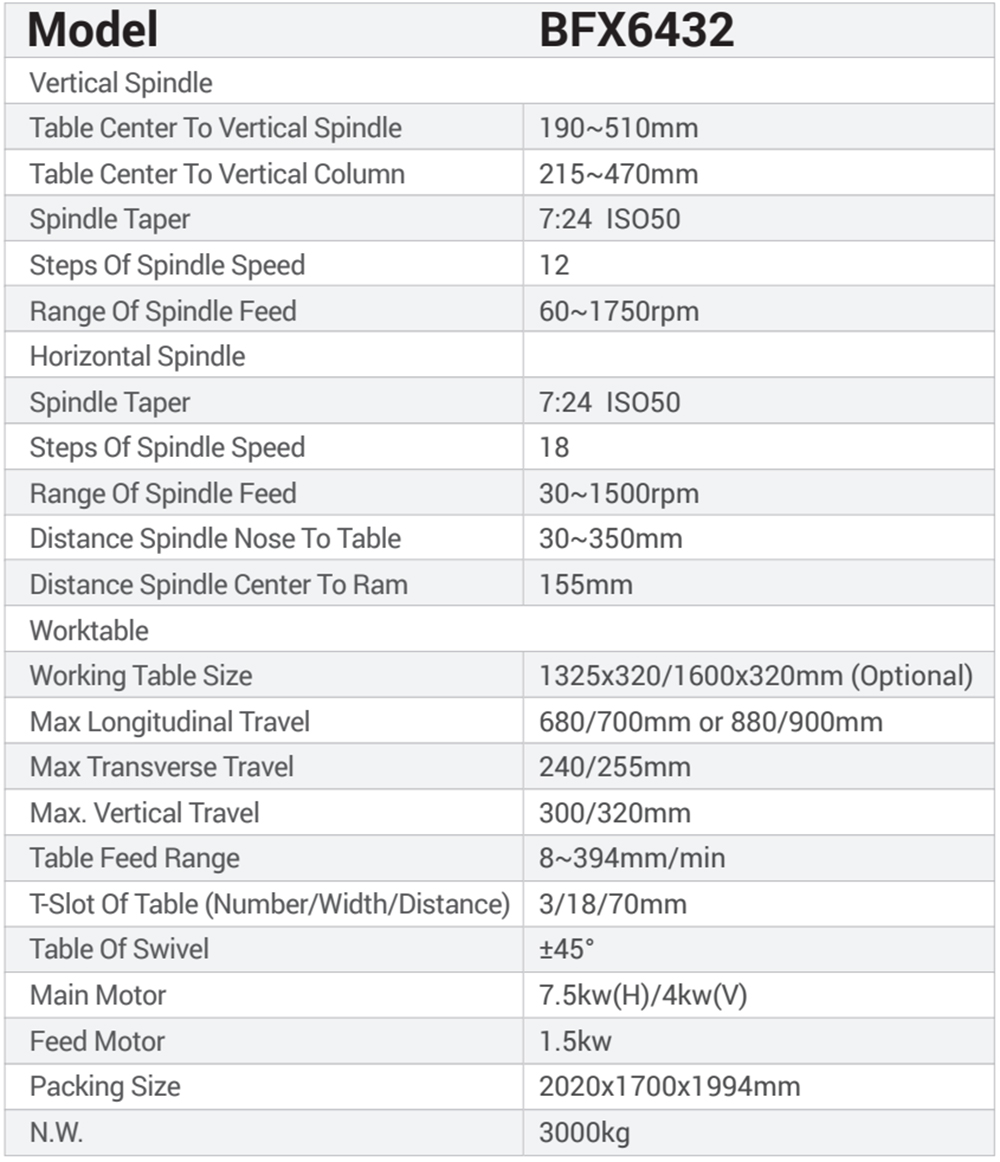

Model	BFX6432
Vertical Spindle
Table center to vertical spindle	190~510mm
Table center to vertical column	215~470mm
Spindle taper	7:24 ISO50
Steps of spindle speed	12
Range of spindle feed	60~1750rpm
