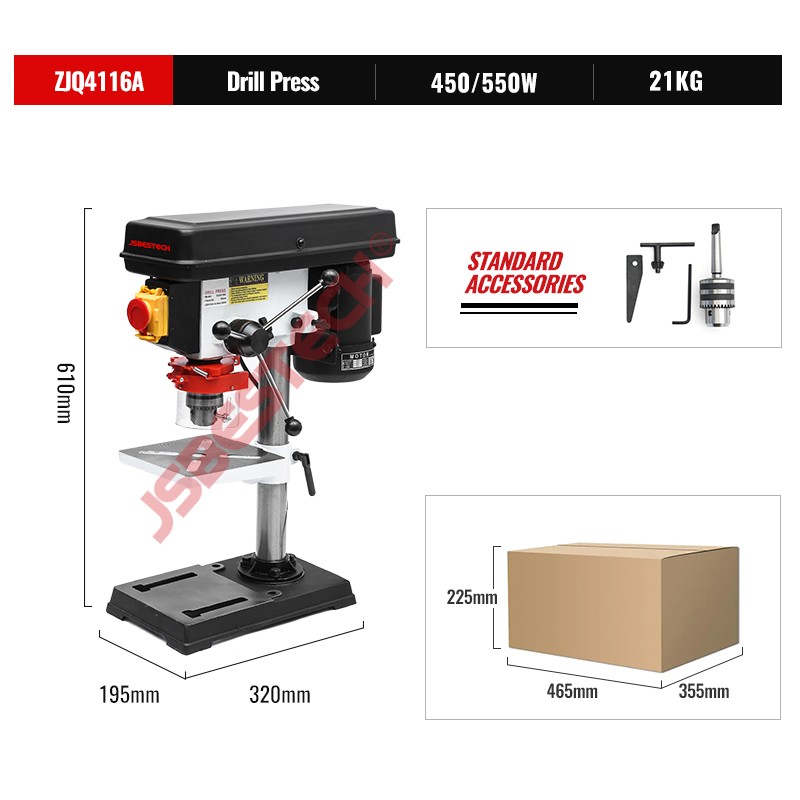

ZJQ4116A 9 Speed mini metal hole drill press set
ZIQ4116A bench drilling press machine belongs to one of our most economic manual mini bench drilling press machine. It is new condition not used Mini bench drilling press machine.And it is small in size and delicate in design. This Mini bench drilling press machine is made in China, but have very good quality as Taiwan drill press.
Features:
1. High Rigid Construction
2. Easy Operation and Extended Durability
3. Different Sizes and Replaceable Worktables
4. Considerable Safety Design
5. 5/8" (16mm) max chuck capacity
6. - 45 degree ~ 0 degree ~ + 45 degree table tilt L&R
7. Chuck guard is standard accessories
8. Optional micro-switch for CE requirement
Model |
ZJQ4116A |
Max distance from spindle axis to surface of column |
115mm |
Max distance from spindle end to surface of table |
245mm |
Max distance from spindle end to surface of base |
330mm |
Swing |
230mm |
Table Size |
170x175mm |
Base Size |
320x195mm |
Column Diameter |
46mm |
Height |
610mm |
Net Weight/ Gross Weight |
21/22kg |
Packing Size |
465x355X225mm |
